Digital Toolmakers Microscope for Measuring Connect Dro Dp400 High Accuracy

Digital Toolmakers Microscope for Measuring Connect Dro Dp400 High Accuracy

Digital Toolmakers Microscope For Measuring Connect DRO DP400 High AccuracyThe STM3020microscopes offer excellent versat
Basic Info.
Model NO. STM-3020
Usage Research
Principle Optics
Transport Package Carton
Specification glass table size: 196X96mm
Trademark Sinowon
Origin China
Production Capacity 30 Sets/Month
Product Description

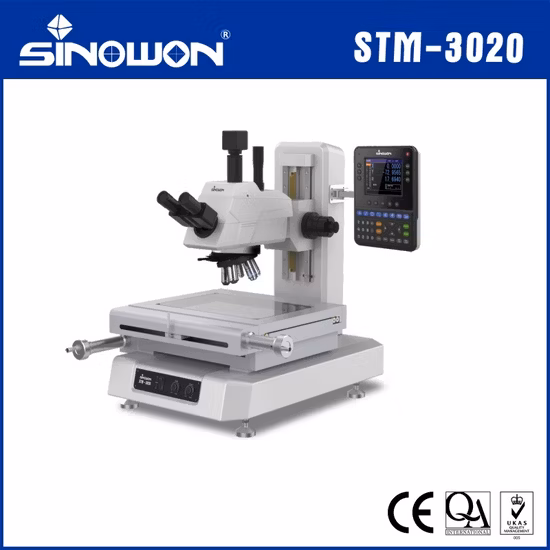

Digital Toolmakers Microscope For Measuring Connect DRO DP400 High AccuracyThe STM3020microscopes offer excellent versatility and high performance three axis measurements of parts and electrical components, with sub-micron precision. Whether samples are small or large, simple or complex, or measurements are being taken by a novice or an expert, the Sniowon STM3020 range features measuring microscopes tailored to fit your needs.

Characteristics:

  • Precision working stage travel:100 x50mm;
  • High precision linear scale : 0.5um;
  • Color screen multifunctional digital readout : DP400;
  • Optical objective with adjustable LED ring reflector illumination;
  • With high accuracy and high stability.

Application:

It is widely used in mechanical, meter, electronic and light industry; university, Institute and metrology department. The measuring profile projector can detect the contour dimension and surface shape of variety complex workpiece, such as templates, punching pieces, cams, threads, gears, molding milling cutters.


Specification:

ModelSTM-3020
Code#531-130
Metall Stage Size252×252mm
Glass Stage Size196×96mm
Resolution0.5um
Measuring Accuracy≤5um
Measuring DeviceDigital Readout DP400
Max.Height of Specimen115mm
Max.Weight of Specimen5Kg
Max.Magnification150×(Φ0.13mm)(15×Eyepiece+10×Objective)
Min.Magnification20×(Φ6.5mm)(10×Eyepiece+2×Objective)
Standard Magnification30×(Φ0.13mm)(15×Eyepiece+2×Objective)
Standard Working Distance67mm
Optical TubeMonocular with 30°depression angle
15×Eyepiece with Crossline Reticle
EyepieceWF15/13
ObjectiveMagnification:2×
Working Distance:2.638"(67mm)
Eyepiece Protractor Range360°
Eyepiece Protractor Graduation
Vernier Angle Reading6'
Contour IlluminationLight source:Tungsten bulb(24V;2W)
Surface IlluminationRing LED illumination brightness adjustable
Power SupplyAC110V/60Hz;220V/50Hz
Dimension(D×W×H)415×315×420mm
Packing Dimension(D×W×H)210×333×391mm
Gross/Net Weight30Kg/25Kg
