Standard Digital Readout Vertical Profile Projector for Thread

Basic Info.

Model NO.	VP400-2010
Shape	Rectangular Prism
Usage	Teaching, Research
Principle	Electronic
Principle of Optics	Polarizing Microscope
Transport Package	Plywood
Specification	CE, ISO
Trademark	SINOWON
Origin	Dongguan, China
HS Code	9031491000
Production Capacity	20 Pieces/Month

Product Description

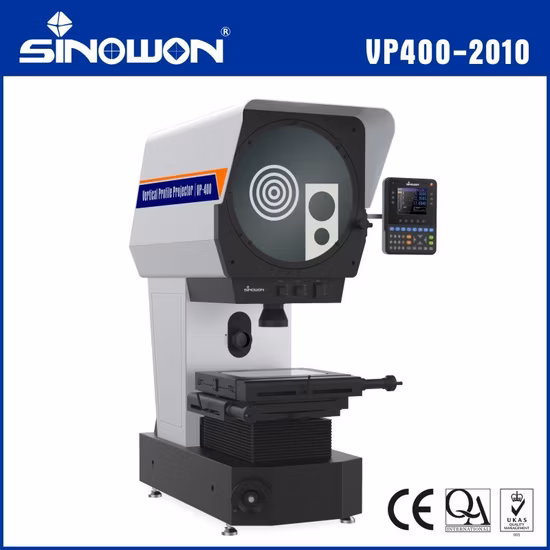

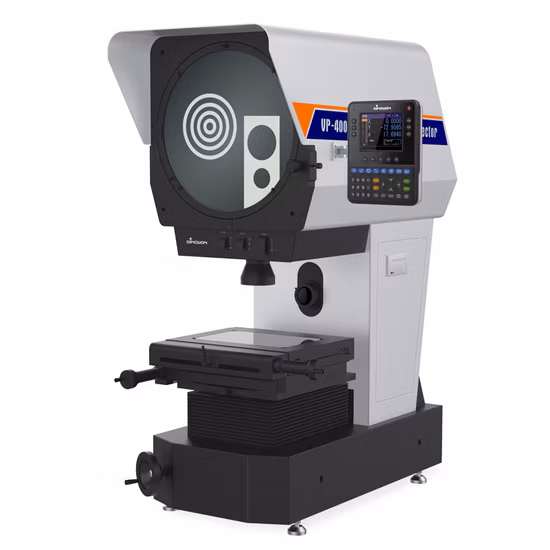

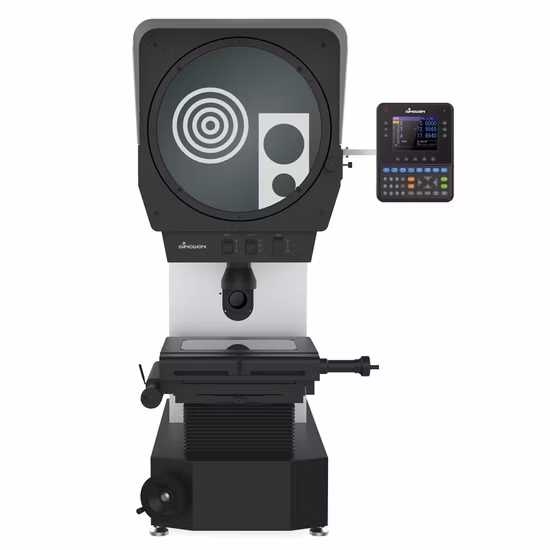

Standard Digital Readout Vertical Profile ProjectorVP400-2010

VP400-2010Profile Projector technology designed to display accurate magnification of workpiece for comparision and precision measurements with data processing.
Features:

1. The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;
2. With coating process reflector, clearer image and great dustproof;
3. Adjustable contour and surface illumination, to meet with difference workpiece demand;
4. Imported high light and long using life LED illumination ,to ensure precision measurement demand;
5. High resolution optical system with clear image and magnification error is less than 0.08%;
6. Powerful Bi-axial fan cooling system,highly increase using life;
7. Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;
8. Built-in Mini-printer, can print and save data;
9. With standard 10X objective, optional 20X,50X,100X objective,rotary table, foot switch ,clamp, etc.

Specification:

Product Name	Ø400mm Digital Vertical Profile Projector
Obverse Image	VP400-2010Z
Order Number	#511-410Z
Metal Stage Size	308x408mm
Glass Stage Size	198x306mm
Stage Travel	200x100mm
Product Dimension(L×W×H)	1003 x 317 x 1309mm
Packing Dimension(L×W×H)	1200x800x1580mm
Focusing	90mm
Accuracy	≤3+L/200(um)
Resolution	0.0005mm
Load Capacity	10Kg
Screen	φ312mm,Measurement Range ≤ Ø300
	Rotation Angle 0~360° ;Resolution: 1 or 0.01°,Accuracy 6'
Digital Readout	DP400 (510-340) Multifunction colorful LCD digital readout
Illumination	Contour Illumination:3.2V/10W LEDSurface Illumination:3.2V/10W LED
Working Environment	Temp 20ºC±5ºC,Humidity 40%-70%RH
Power Supply	AC110V/60Hz; 220V/50Hz,150W
Cold-air Blowing System	3-axis Powerful Fan
Gross/Net Weight	280/230kg
