CPJ-3025A Digital optical profile projector Optical Measuring MachineFeatures:CPJ-3000/3000Z series digital measuring pr
Basic Info.
Model NO. CPJ-3025A
Trademark lonroy
Origin China
HS Code 9031491000
Production Capacity 200PCS/Month
Product Description

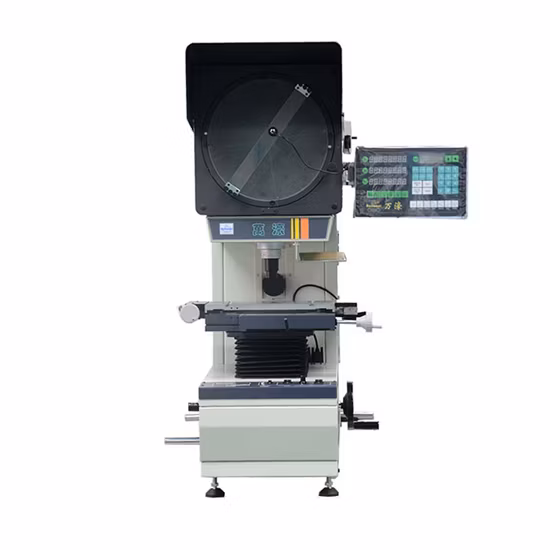

CPJ-3025A Digital optical profile projector Optical Measuring MachineFeatures:CPJ-3000/3000Z series digital measuring projector is compact in structure, simple and beautiful in appearance, economical and practical, and reliable. It can effectively measure and compare workpieces directly, such as stamping parts, gears, threads, tools, etc.It is widely used in machinery manufacturing, electronics, moulds, instruments and clocks and other industries.CPJ-3025A Digital optical profile projector Optical Measuring MachineTechnical parameters:
ModelCPJ-3015ACPJ-3020ACPJ-3025ACPJ-3030ACPJ-3040A
TableThe metal table's size354 x228 mm404 x228 mm450 x280 mm500 x330 mm606 x466 mm
The glass table's size210 x160 mm260 x160 mm306 x196 mm321 x221 mm450 x350mm
X-axis travel150mm200mm250mm295mm400mm
Y-axis travel100mm100mm150mm195mm300mm
Z-axis travel100mm (for focus)
X, Z-axis digital display resolution , ≤ (3 + L/200) μm0.0005mm
coordinate indication error(2.5 + L/100) μm
Size L×W×H(mm)780×780 × 1100780×780 × 1100810×780 × 1120900×780 × 11201040×780 × 1120
WeightUnit(kg)160160180250250
Projector screenScreen size (mm)Ø 312 Used range>Ø 300(with the meter line)
Screen rotary rang 0°~360°
Rotation digital resolution1′or 0.01°
LensMagnification10 X(Option)20X(Option)50X(Option)100X(Option)
Working distance(mm)77.744.338.425.3
Field of view in object(mm)Φ30 15Φ6 Φ3
Max.workpiece height(mm)90909090
Data Processing SystemDC-3000 multi-function data processing system, appearing in English ,can be used to gather the data and measure the point , line, circle, angle and distance.
OptionsMicro-printer, optical Edge Detector, M2D software; detailed description see Annex projector.
Power110V-240V(AC), 50/60HZ, Total power=400W
